Product Manual 2025
Bots & Bowls Product Fleet

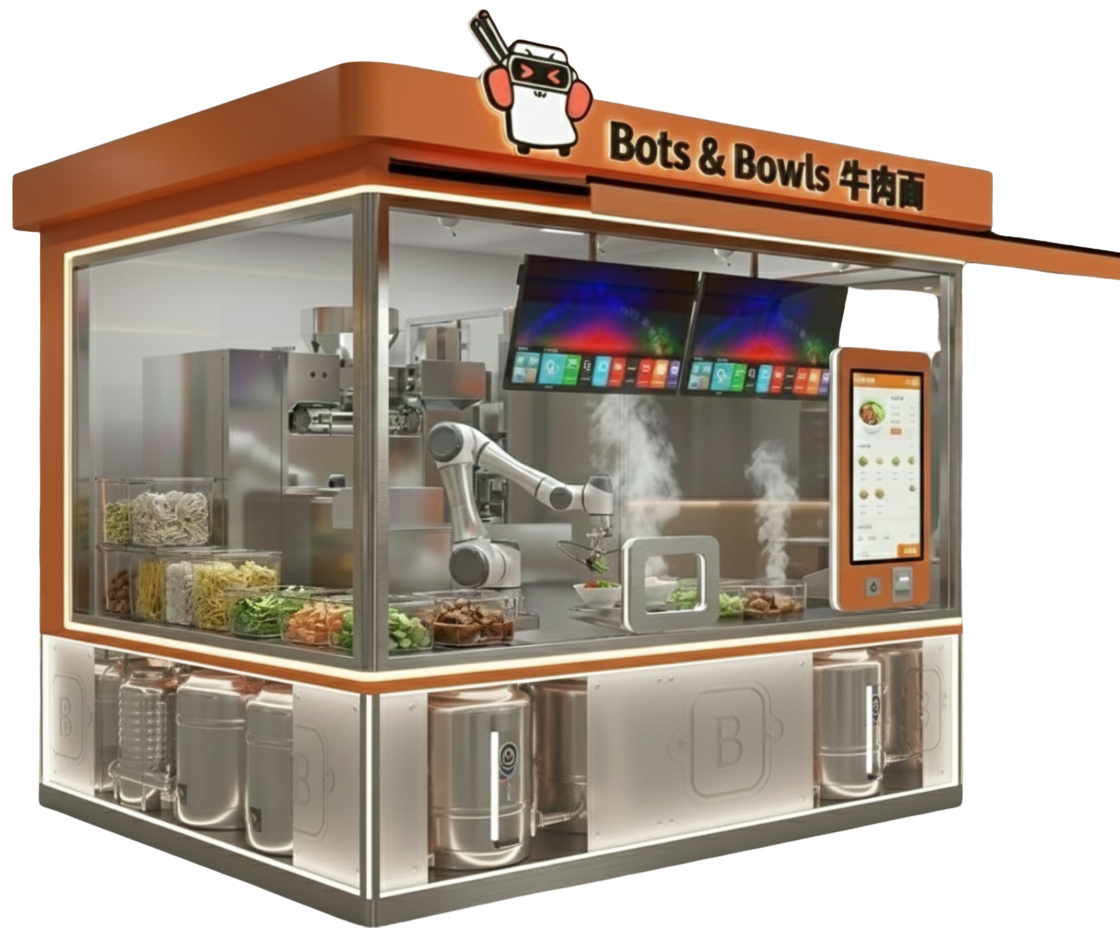

Smart Noodle Vending Bar (ZNSMJ-VII)
Description
The Smart Noodle Vending Bar is a comprehensive solution for Chinese staple foods, integrating multiple advantages: high-tech, highly intelligent, and easy to deploy. Relying on intelligent noodle machines and a supporting IoT Big Data SaaS platform, this solution standardizes staple food catering. It requires no chefs and no kitchen, enabling 24-hour unmanned operation. It achieves the fastest production time of 48 seconds from raw flour to a bowl of beef noodles. It offers dozens of varieties including beef noodles and dry noodles, receiving high praise for taste and affordability.
- Multi-zone boiling technology with liquid level sensors to prevent burning or overflowing.
- Smart self-adaptive management system for real-time monitoring and fault alarms via SaaS.
- 14 fault detection procedures ensuring every bowl is perfect.
- Fully visible, unmanned process ensuring hygiene and zero secondary pollution.
- Automated cleaning, disinfection, and sterilization controls.
Technical Specifications
| Model | ZNSMJ-VII |
|---|---|
| Preheat Time | 15 min |
| Capacity | 65-70 Bowls/Hour |
| Flour Capacity | 22 ± 0.5 kg |
| Power | 380V / 50Hz |
| Weight | 2600 kg |
| Dimensions | 4055 × 2460 × 2620 mm |
| Payment | Visa, WeChat, Alipay |
| Capacity Features | Toppings: 75 servings. Supports 3 soups, 2 sauces, 6 garnishes. |

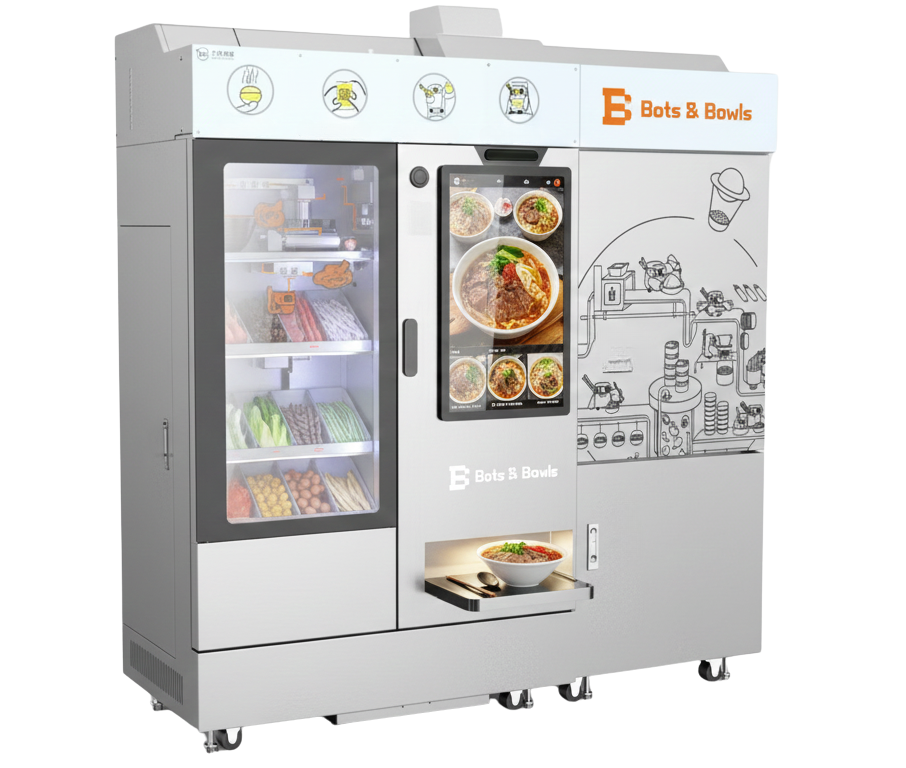

Smart Integrated Noodle Machine (Future Noodle Shop)
Description
This machine automates the entire sequence from raw flour to a finished bowl: kneading, sheeting, cutting, boiling, adding soup, and dispensing. It also supports rice noodle storage and cooking. Users simply scan a code for 'freshly made' noodles. The process is fully visible, combining scientific water-flour ratios with mechanical precision. After boiling and cooling, broth and garnishes are added automatically.
- Rapid Serving: Approx. 60 seconds continuous output.
- Freshly Made: Flour turns into noodles instantly upon ordering.
- Versatile: Supports both wheat noodles and rice noodles.
Technical Specifications
| Footprint | 3 m² |
|---|---|
| Net Weight | 1300 kg |
| Flour Capacity | 20 + 0.5 kg |
| Powder Bin Capacity | 36 Blocks |
| Water Capacity | 100 L (Purified) |
| Empty Bowl Capacity | ≤ 100 Units |
| Brine Capacity | 9 L |
| Seasoning Packets | 75 Packs |
| Preheat Time | 15 min |
| Rated Voltage | AC 380V |
| Rated Power | ≤ 12.5 kW |
| Max Efficiency | 60s / Portion |
| Dimensions | 2250 × 1200 × 2250 mm |

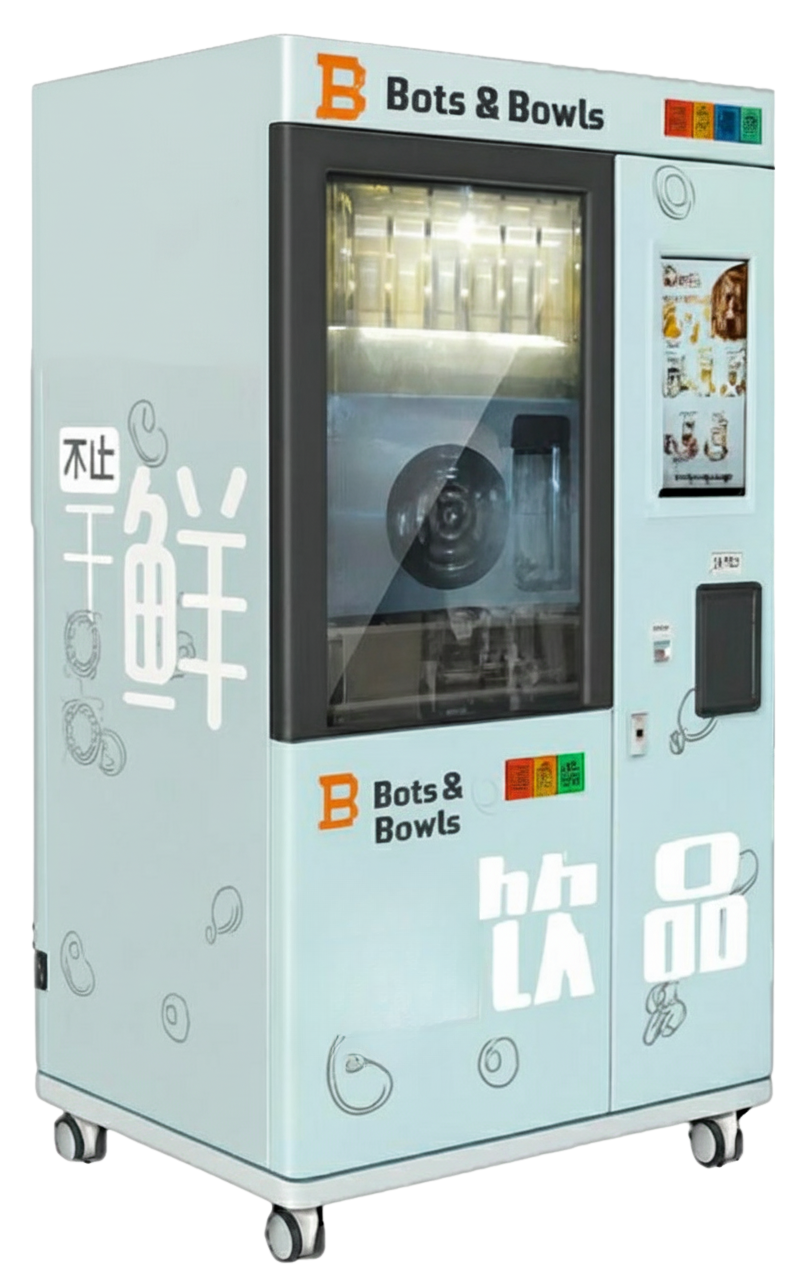

Multi-Grain Beverage Machine
Description
A perfect companion for the noodle shop. Freshly ground and brewed in seconds. Features intelligent temperature and quantity control. After scanning to pay, a steaming cup of soy milk or grain drink is ready in seconds. Flavors include Brown Rice Soy, Black Bean, Red Bean, Mung Bean, and Corn.
- 24H Unmanned Self-Service.
- Continuous production of up to 200 cups.
- Automated grinding, brewing, and capping.
Technical Specifications
| Dimensions | 2050(H) × 1100(W) × 800(D) mm |
|---|---|
| Weight | 470 kg |
| Voltage | 380V |
| Peak Power | 6 KW |
| Efficiency | 60 sec / Cup |
| Water Source | Bottled Purified Water |

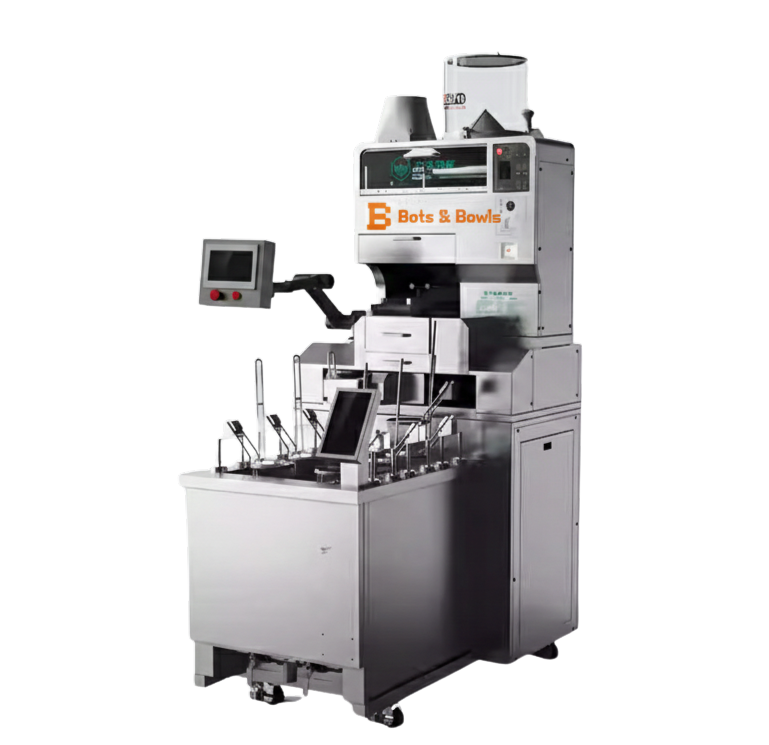

Robotic Noodle Shop
Description
Features rapid meal production and a fully integrated internet payment system. The robotic arm mimics hand-made textures—Soft, Fragrant, Smooth, and Elastic. The entire process is visible, safe, and hygienic.
- Production: 1 Bowl / 1 Min (Continuous).
- Texture: Mimics hand-rolled noodles, soft but chewy.
- Smart Payment: WeChat/Alipay integration.
Technical Specifications
| Model | Robotic Noodle Shop |
|---|---|
| Power | 12.75 kW |
| Voltage | 380V |
| Weight | 600 kg |
| Dimensions | 2600 × 2150 × 1570 mm |
| Air Pressure | 0.4Mpa - 0.6Mpa |
